A bit of marine work over the hols

Postby modernist » Sun Jan 01, 2012 8:26 pm

I needed to tidy up the nav station and install a new plotter on my boat and a few problems arose when measuring up.

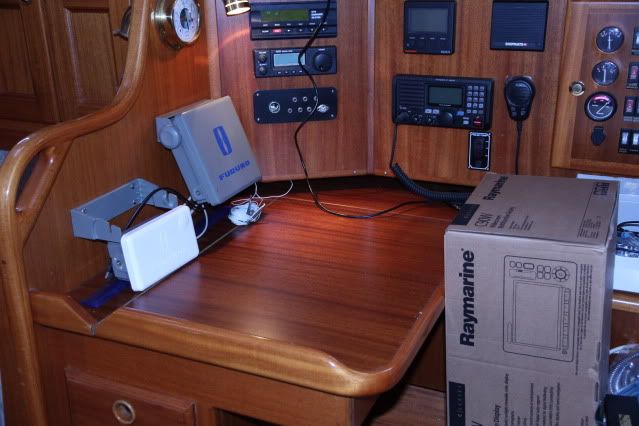

This was the situation at the outset.

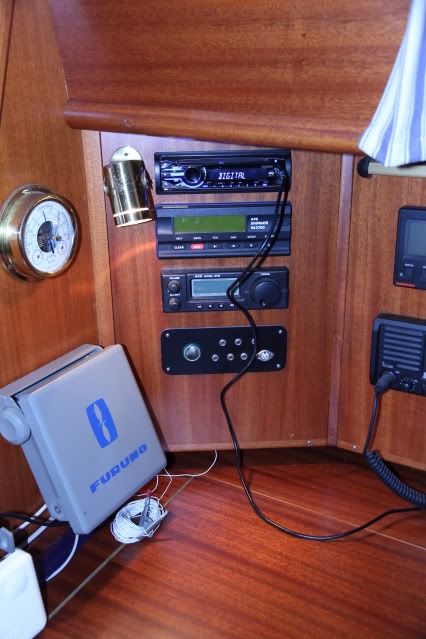

Several of the old radio's etc were redundant and the panel needed refurbishing before re-installing the good stuff


The plotter needed a binnacle over the chart table

The chart table lid would not be able to open under the binnacle so would need a second piano hinge and the fiddle mitreing back to allow it to open and give it a stop.

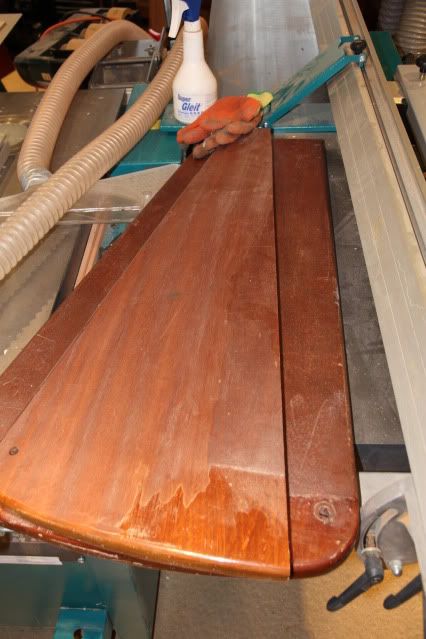

I started with the easy one the piano hinge in the lid.

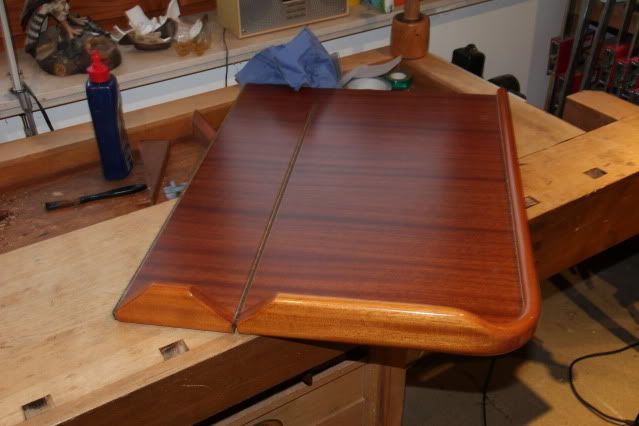

Remembering to maintain the overall depth so that the trim lined up I sawed to top in two and created a 5mm gap for the hinge. I cut back the fiddles to 45 deg to act as a stop.


Luckily I found that the original had been varnished in Sikkens Marine Natural which matched perfectly (that's this year's good luck used up already)

Next the casing for the plotter

Although the boat is Mahogany I decided to use some nicely figured Sapele which I was re-cycling from an old staircase.

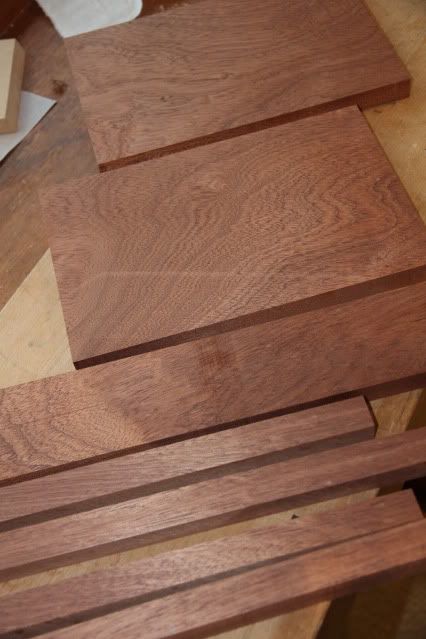

The usual saw and surface routine produced some nice timber (and free)

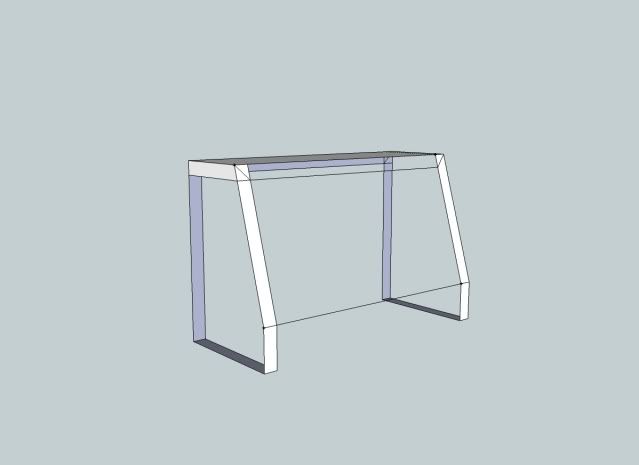

I did a rough sketchup to work out the size of the sides to give the required viewing angle

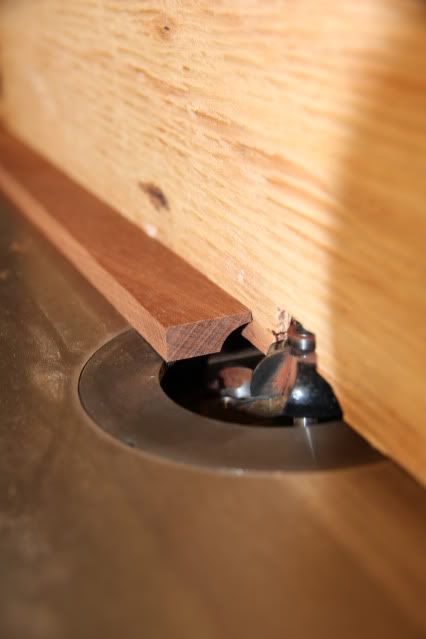

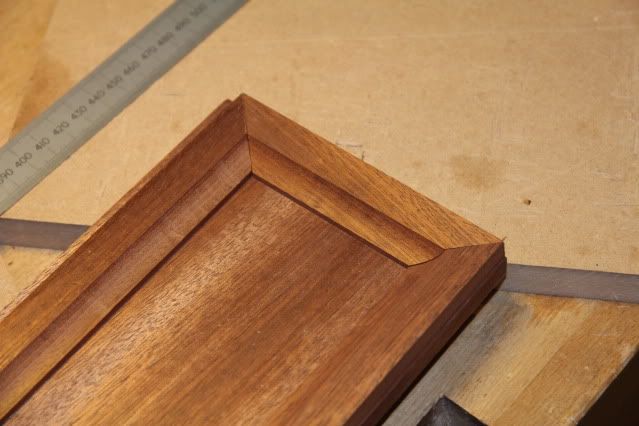

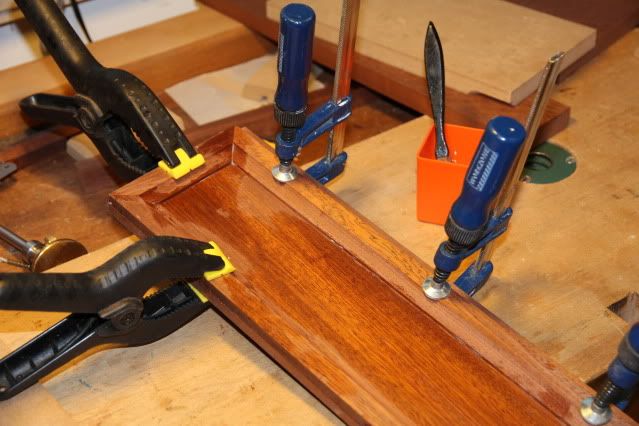

I needed a pencil tray on the top which would hang onto the pencils whilst at sea and decided to build up mouldings on top of a 10mm base.

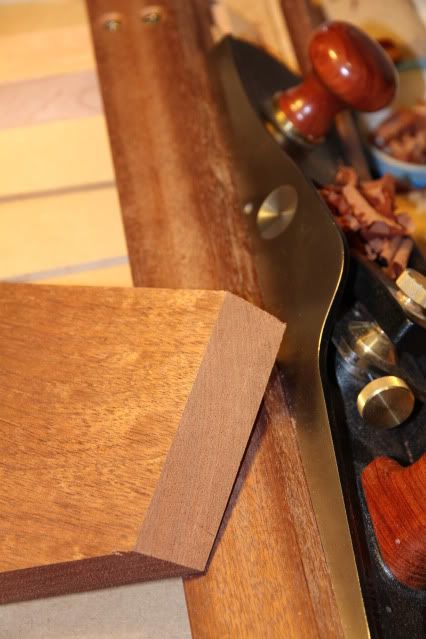

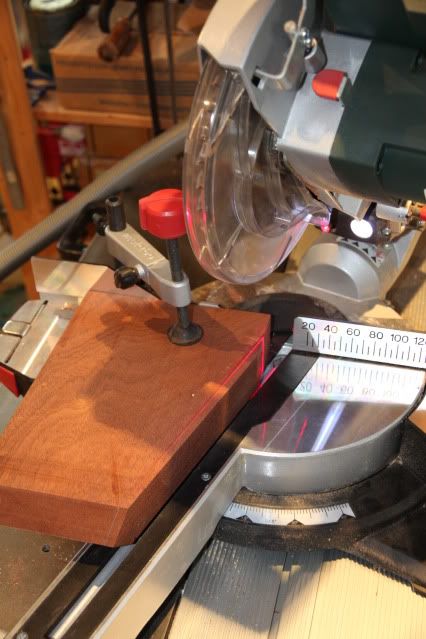

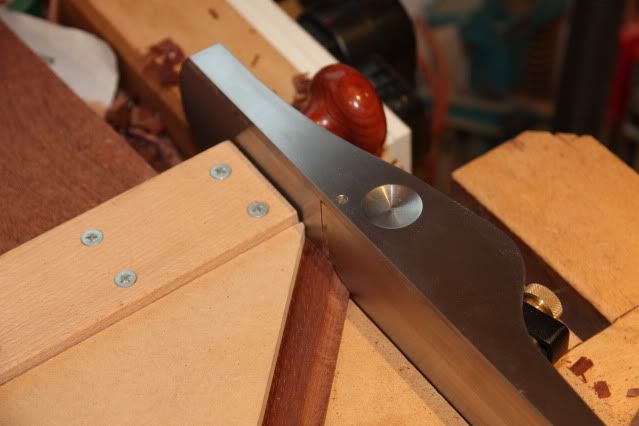

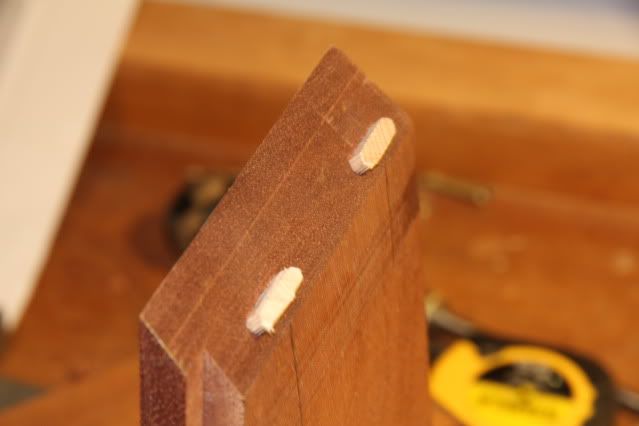

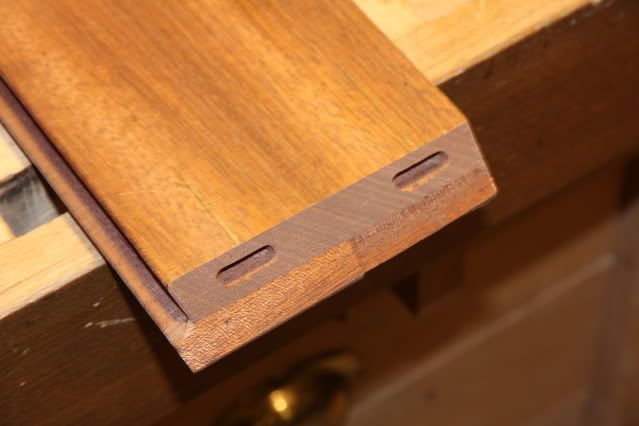

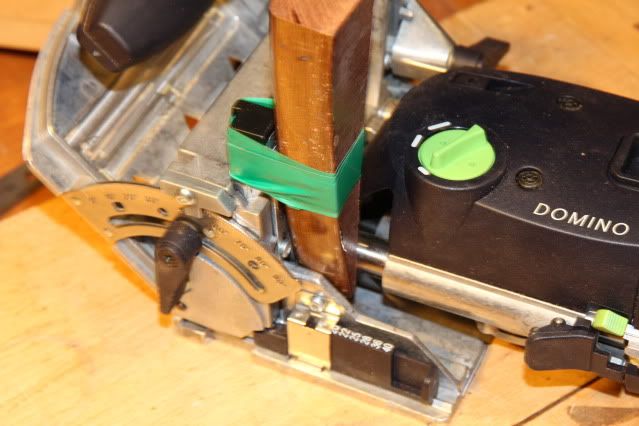

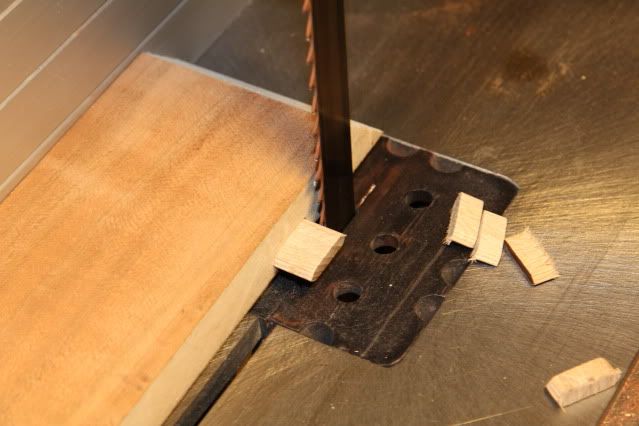

The top would be mitred and domino'd to the sides but the base was a little thin at 10mm so I would have to cut the doms down and restrict the plunge on the cutter. I had made a small upgrade to the mitre shooting board since last week and glued the 45 deg offcut to the bottom edge to prevent wear.






I dom'd up a simple frame for the base as I wanted to leave the base and back open for maintenance.

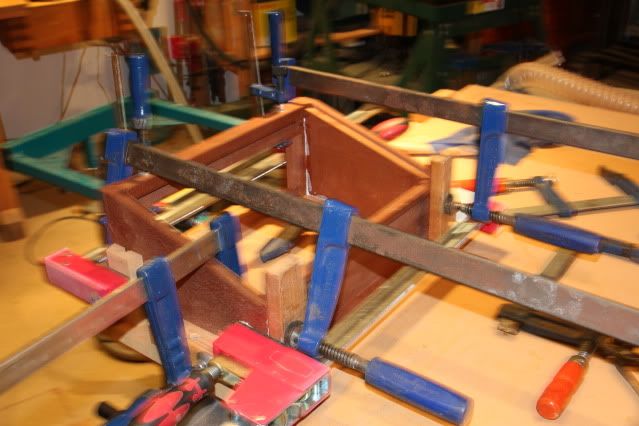

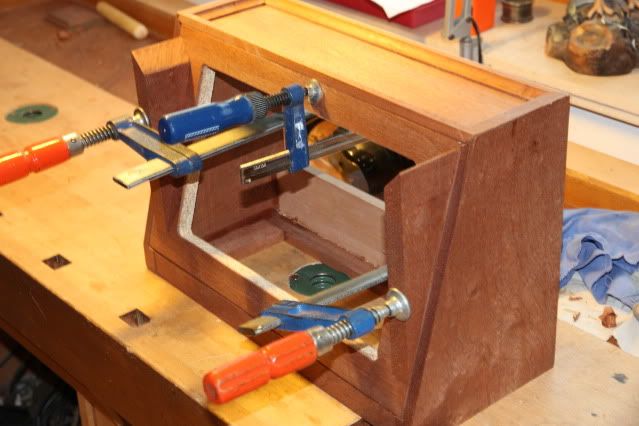

This was my first serious job with the domino and I must say I was impressed with the speed you can knock things out. Just as well when you consider the price. The glue up went to plan and we had a carcass!

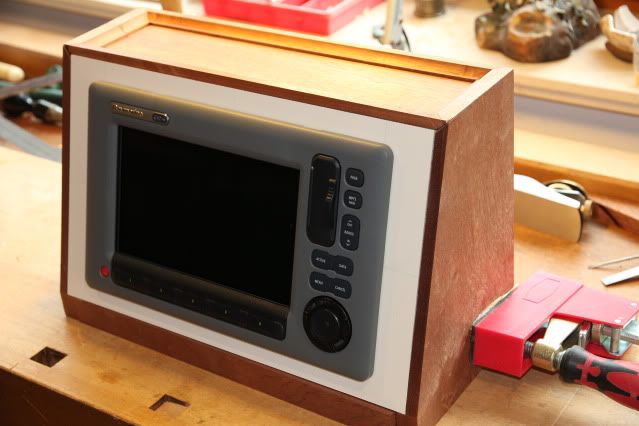

I made a front panel of off white MFC and made sure the plotter would fit before proceeding

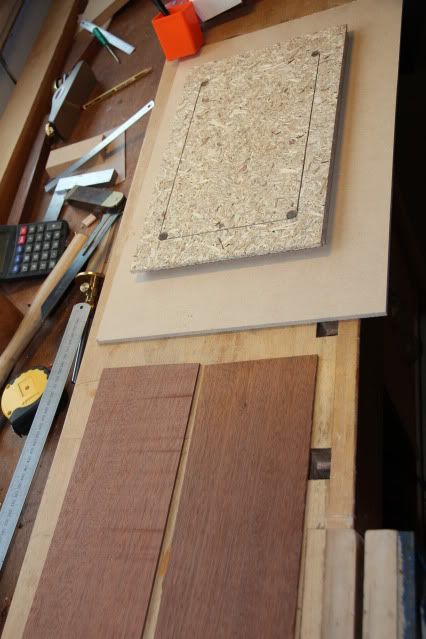

At this point LOML arrived and said she wasn't having white chip board at any price so I had to think again. :evil: I had a piece of 8mm Sapele 120mm wide which I decided to deep cut and saw veneer a panel to maintain the appearance. I risked putting a piece of MFC through the thicknesser to mill it down to 15mm and it seems to have survived.

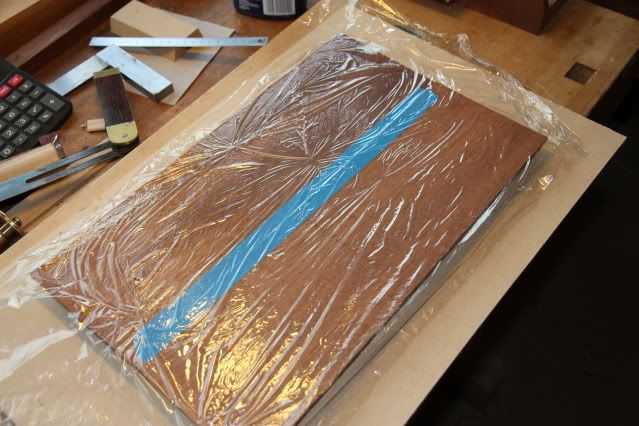

As luck would have it I had just bought a new vac bag and valve and had got over the extortionate charge so out came the Airpress for the first time in a while

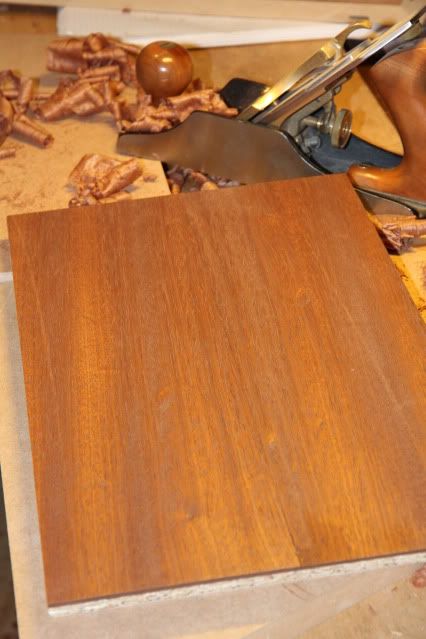

It cleaned up well having struggled to work out which way the grain was going I was lucky again

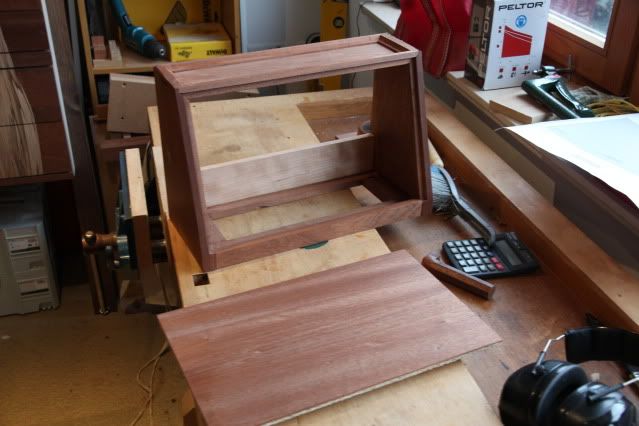

And in went the veneered panel

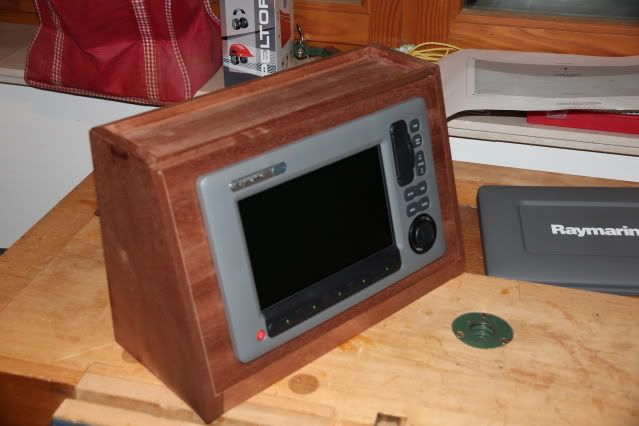

Another dry run - seems OK


Just the clean up and finishing tomorrow.

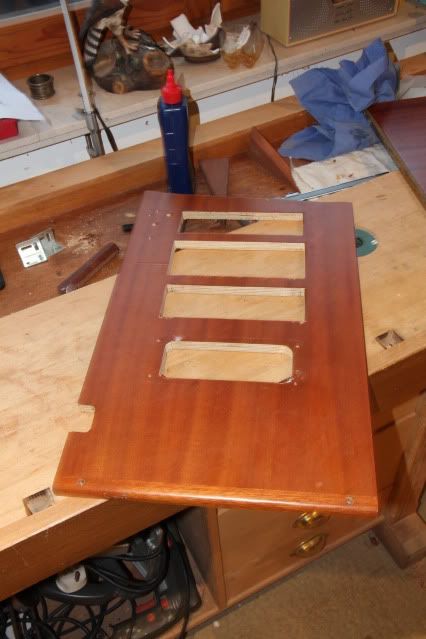

Inspired by the success of the sawn veneer I decided to make up a new part panel to let into the instrument panel keeping the outer frame and had some re-cycled Honduras Mahogany salvaged from a Midland Bank. This was a bit of a test for the bandsaw cutting 3mm veneers from 250mm material but, in the event, it was problem free.

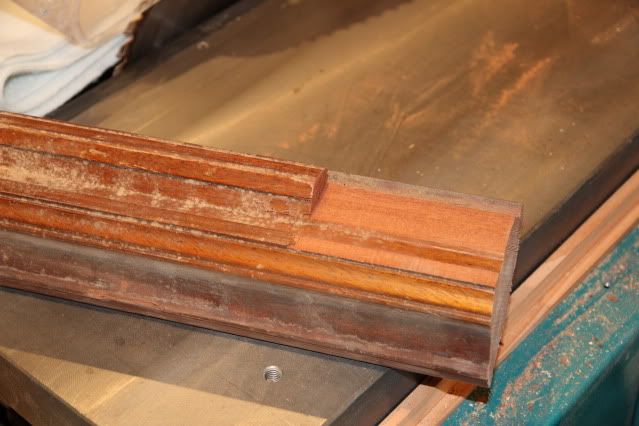

A solid post from the salvage - this was going to be burnt!

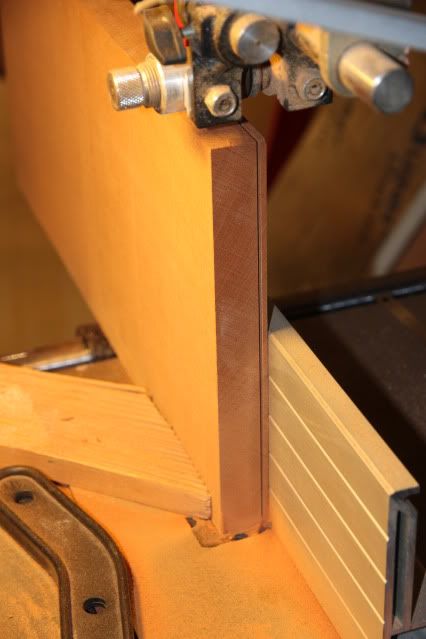

Deep sawing the 250mm stock

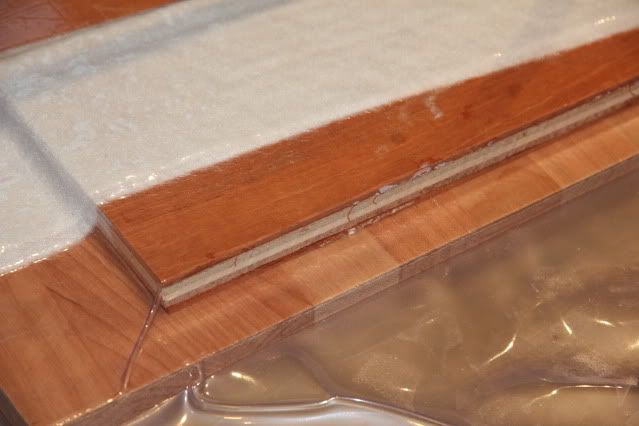

IN the airbag Mahog both sides of some awful FE ply


I think that's enough for one day! I'm ready for a beer.
Cheers

Brian


Tune in, turn on with Scandi Modern, it's fab.

Visit my blog at http://modernistmullings.blogspot.co.uk

User avatar
Doug
Subscriber
Posts: 2512
Joined: Thu Nov 20, 2008 8:52 pm
Location: location location
Contact:

Re: A bit of marine work over the hols

Postby Doug » Sun Jan 01, 2012 9:32 pm

I agree with Ro re the white chipboard, Brian.

Nice looking job.

mark270981
Subscriber
Posts: 2881
Joined: Sun Apr 04, 2010 8:06 pm
Location: Sutton Coldfield
Contact:

Re: A bit of marine work over the hols

Postby mark270981 » Sun Jan 01, 2012 9:37 pm

Love the wip.

What kind of boat is it?
--------------------------------------------------------------
ALOTBSOL

Mark - Sutton Coldfield

modernist
Subscriber
Posts: 5085
Joined: Tue Oct 16, 2007 9:31 pm
Location: Crich, Matlock
Contact:

Re: A bit of marine work over the hols

Postby modernist » Sun Jan 01, 2012 9:39 pm

Doug wrote:I agree with Ro re the white chipboard, Brian.

Nice looking job.


Well it's still there but you just can't see it :lol:

I'm keeping you two apart..............mates :roll:
Cheers

Brian


Tune in, turn on with Scandi Modern, it's fab.

Visit my blog at http://modernistmullings.blogspot.co.uk

modernist
Subscriber
Posts: 5085
Joined: Tue Oct 16, 2007 9:31 pm
Location: Crich, Matlock
Contact:

Re: A bit of marine work over the hols

Postby modernist » Sun Jan 01, 2012 9:47 pm

mark270981 wrote:Love the wip.

What kind of boat is it?


It's a Swedish sailing yacht a Malo 38. The Swedes are good at boat joinery. All those curved rails are laminated from 1mm leaves of Honduras Mahogany.
Cheers

Brian


Tune in, turn on with Scandi Modern, it's fab.

Visit my blog at http://modernistmullings.blogspot.co.uk

mark270981
Subscriber
Posts: 2881
Joined: Sun Apr 04, 2010 8:06 pm
Location: Sutton Coldfield
Contact:

Re: A bit of marine work over the hols

Postby mark270981 » Sun Jan 01, 2012 9:52 pm

I've done a little sailing over the years, never skippered though.

Sailing round the isle of wight was my fave
--------------------------------------------------------------
ALOTBSOL

Mark - Sutton Coldfield

modernist
Subscriber
Posts: 5085
Joined: Tue Oct 16, 2007 9:31 pm
Location: Crich, Matlock
Contact:

Re: A bit of marine work over the hols

Postby modernist » Sun Jan 01, 2012 9:58 pm

mark270981 wrote:I've done a little sailing over the years, never skippered though.

Sailing round the isle of wight was my fave


We started off down there but it's a dire drive from Matlock so we moved to N Wales. It can be a bit exiting around the IOW!
Cheers

Brian


Tune in, turn on with Scandi Modern, it's fab.

Visit my blog at http://modernistmullings.blogspot.co.uk

mark270981
Subscriber
Posts: 2881
Joined: Sun Apr 04, 2010 8:06 pm
Location: Sutton Coldfield
Contact:

Re: A bit of marine work over the hols

Postby mark270981 » Sun Jan 01, 2012 10:08 pm

modernist wrote:
mark270981 wrote:I've done a little sailing over the years, never skippered though.

Sailing round the isle of wight was my fave


We started off down there but it's a dire drive from Matlock so we moved to N Wales. It can be a bit exiting around the IOW!


We saw it as a posh pub crawl, but the reality was it cost less than a hundred quid each per day for the boat. Sailing isn't the best cure for hangovers though.

Do you get there much? I've been to Abersoch which was also great but that was going on the propelled version of boats.
--------------------------------------------------------------
ALOTBSOL

Mark - Sutton Coldfield

modernist
Subscriber
Posts: 5085
Joined: Tue Oct 16, 2007 9:31 pm
Location: Crich, Matlock
Contact:

Re: A bit of marine work over the hols

Postby modernist » Sun Jan 01, 2012 10:38 pm

mark270981 wrote:
modernist wrote:
mark270981 wrote:I've done a little sailing over the years, never skippered though.

Sailing round the isle of wight was my fave


We started off down there but it's a dire drive from Matlock so we moved to N Wales. It can be a bit exiting around the IOW!


We saw it as a posh pub crawl, but the reality was it cost less than a hundred quid each per day for the boat. Sailing isn't the best cure for hangovers though.

Do you get there much? I've been to Abersoch which was also great but that was going on the propelled version of boats.


Sailing is often pub to pub, which is one of the benefits. Don't mention cost, I've just had to replace the autopilot which burned out in the middle of the Irish Sea last summer plus the chartplotter.

We get over as often as work allows, hopefully that will be a lot more when I retire.
Cheers

Brian


Tune in, turn on with Scandi Modern, it's fab.

Visit my blog at http://modernistmullings.blogspot.co.uk

modernist
Subscriber
Posts: 5085
Joined: Tue Oct 16, 2007 9:31 pm
Location: Crich, Matlock
Contact:

Re: A bit of marine work over the hols

Postby modernist » Mon Jan 09, 2012 9:53 pm

Well another one signed off although not really concours standard following some faulty thinking on joining mitres


I didn't want the appearance of a box with a trim pinned around the top edge so the beads form part of the mitre. This leads to opposing grain half way around the radiused corners, so we'll see if it survives. I think it might.

Cheers

Brian


Tune in, turn on with Scandi Modern, it's fab.

Visit my blog at http://modernistmullings.blogspot.co.uk

modernist
Subscriber
Posts: 5085
Joined: Tue Oct 16, 2007 9:31 pm
Location: Crich, Matlock
Contact:

Re: A bit of marine work over the hols

Postby modernist » Tue Jan 10, 2012 10:44 pm

Oh all right then, interesting job but a poor end result. Can't win em all :oops:

Anyway I haven't got all day to faff around with it like you guys :lol:
Cheers

Brian


Tune in, turn on with Scandi Modern, it's fab.

Visit my blog at http://modernistmullings.blogspot.co.uk

Chems
Occasional Poster
Posts: 139
Joined: Thu Oct 14, 2010 7:41 pm
Contact:

Re: A bit of marine work over the hols

Postby Chems » Wed Mar 07, 2012 3:34 am

Nice build, I had no idea there was work been done in this forum! What is the deal with the bit of wood taped to the dom?

Whenever I go on a boat I always think how hard it must be to fit anything to them. Its like a nightmare ever surface curved, water and high wear and tear.
