Legacy Ornamental wood lathe

Postby timber » Wed Jun 22, 2016 11:17 am

Hi
Has anyone got, or has had one of the above, I have just bought an old one and although it is in good condition, I should like to know more about, ways of using it, I have the original VDS tapes that came with it but they are from the U.S.A. and won't play on my player.
Cheers
d*ck

tusses
Subscriber
Posts: 3484
Joined: Sat May 24, 2008 11:06 pm
Contact:

Re: Legacy Ornamental wood lathe

Postby tusses » Wed Jun 22, 2016 1:17 pm

have you checked to see if anyone has put the videos on youtube ?

jfc
Administrator
Posts: 10637
Joined: Thu Sep 27, 2007 3:39 pm
Location: London
Contact:

Re: Legacy Ornamental wood lathe

Postby jfc » Wed Jun 22, 2016 2:02 pm

Theres some info and tips here http://legacywoodworking.com/index.cfm

jfc
Administrator
Posts: 10637
Joined: Thu Sep 27, 2007 3:39 pm
Location: London
Contact:

Re: Legacy Ornamental wood lathe

Postby jfc » Wed Jun 22, 2016 2:09 pm

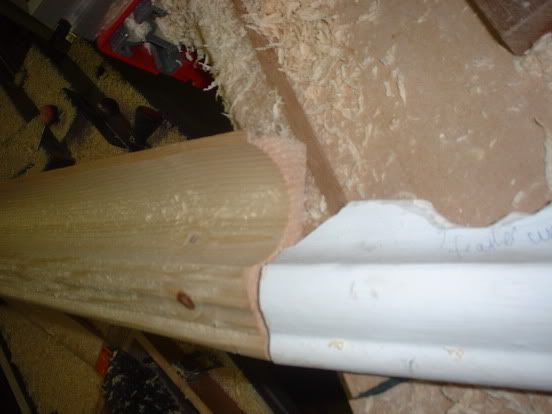

Ive used it for a few jobs like matching moudings

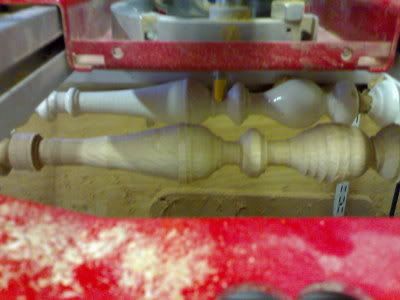

Duplicating newel posts and spindles .

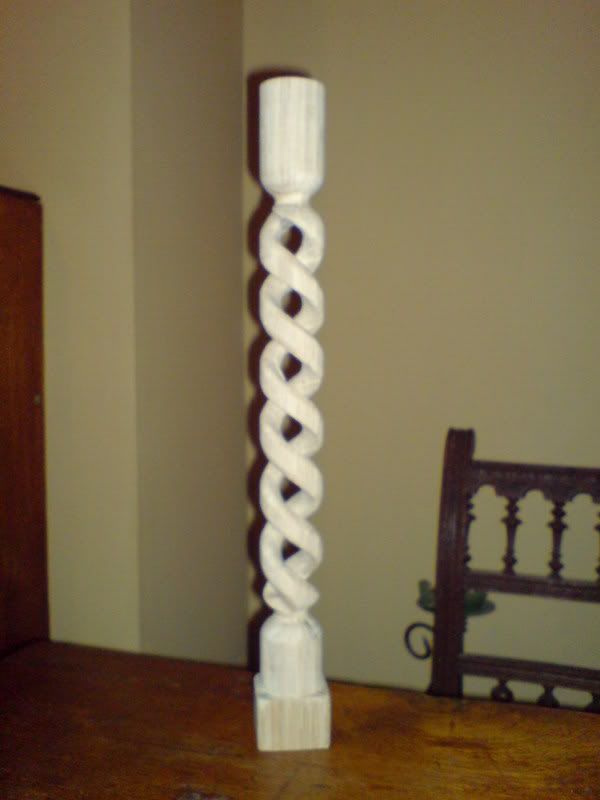

and generally messing around .



timber
New Member
Posts: 24
Joined: Wed Jun 08, 2016 7:00 pm
Contact:

Re: Legacy Ornamental wood lathe

Postby timber » Wed Jun 22, 2016 2:27 pm

jfc wrote:Theres some info and tips here http://legacywoodworking.com/index.cfm


I am not up the latest Model ££££ mine is the Woodchuck as black as sin, must get it resprayed sometime in red.
I take it you do the copying of the spindles using the cutter at the side and not from above, as I do on my Trend router lathe. Is it 1/2 " straight

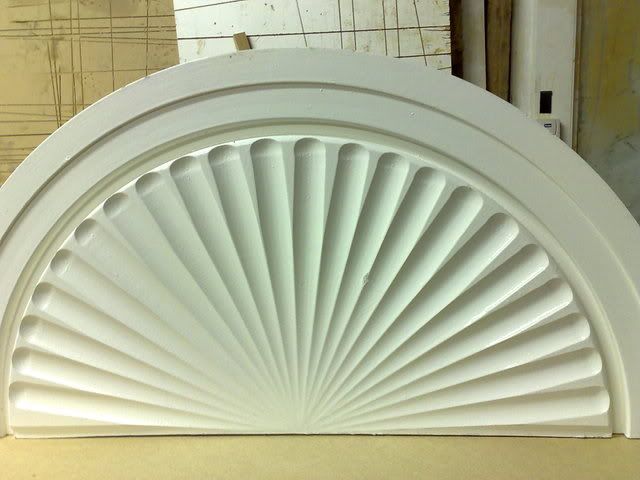

You also must have a rotary table to do that circular pattern
Thanks for your help and the pics. they look good.
Cheers
Richard

jfc
Administrator
Posts: 10637
Joined: Thu Sep 27, 2007 3:39 pm
Location: London
Contact:

Re: Legacy Ornamental wood lathe

Postby jfc » Wed Jun 22, 2016 7:13 pm

I do the spindles by dropping the cutter onto the template and then winding the handle so the cutter moves onto the new blank i am making .
The rotary table is just a bit of metal that goes between the rails with a pin in the middle of it . I made an MDF table with a hole in it to take the pin . I guess you could use the end stock to do the same job if you could fit something to it to take a home made table .

timber
New Member
Posts: 24
Joined: Wed Jun 08, 2016 7:00 pm
Contact:

Re: Legacy Ornamental wood lathe

Postby timber » Fri Jun 24, 2016 6:49 pm

Thanks jfc
I have been trying to thank you for your help and the pics of your work.
I just could not post a pic with this message for some reason. So have posted my disaster under the heading Woodchuck
Regards
Richard
