Hottubtimemachine

Postby jonnyd » Fri Jun 28, 2013 6:32 pm

A bit of fun for a Friday. A load of larch was delivered and we started with the base. The T&G boards were held temporarily underneath whilst a circle was routed out to 1.75m diameter


The boarding was pre machined but a housing was needed to fit over the base so this was done on the RAS


The boards were placed around the base and pulled in with some large ratchet straps.


Over she goes


You can see the metal straps holding it together here


The heating is done by woodburner which you can see here.


Cheers

Jon
For the latest from the workshop follow on twitter @JonnysWorkshop
Pics from the workshop on Instagram @jonnydburn

sainty
Subscriber
Posts: 2658
Joined: Sun Nov 25, 2007 9:37 am
Location: southampton
Contact:

Re: Hottubtimemachine

Postby sainty » Fri Jun 28, 2013 6:46 pm

Way too cool Jonny!!

Is that one of the logosol kits?

Only photos with scantily clad women from now on, not you and your mates please!

mattty
Subscriber
Posts: 1978
Joined: Mon Jan 19, 2009 4:21 pm
Contact:

Re: Hottubtimemachine

Postby mattty » Fri Jun 28, 2013 7:27 pm

sainty wrote:Way too cool Jonny!!

Is that one of the logosol kits?

Only photos with scantily clad women from now on, not you and your mates please!


Sigh... i'll put my dressing gown back on...
Cheers, Matt.

jfc
Administrator
Posts: 10654
Joined: Thu Sep 27, 2007 3:39 pm
Location: London
Contact:

Re: Hottubtimemachine

Postby jfc » Fri Jun 28, 2013 8:53 pm

mattty wrote:
sainty wrote:Way too cool Jonny!!

Is that one of the logosol kits?

Only photos with scantily clad women from now on, not you and your mates please!


Sigh... i'll put my dressing gowns back on...



I fixed that for you X

senior
Subscriber
Posts: 3305
Joined: Sat Oct 25, 2008 3:13 pm
Location: on the sofa
Contact:

Re: Hottubtimemachine

Postby senior » Fri Jun 28, 2013 9:05 pm

Dogs bolloxs that is.
How long will it take to heat up.
Make sure you have some of that dye handy that reacts to pee pee, I reckon your Dad is the type to have a sly one. :lol: :lol:
Have a look at my facebook page and leave a comment or two.
Or browse my website Hand made kitchens Essex

furynaturre
Subscriber
Posts: 232
Joined: Sun Sep 09, 2012 9:22 pm
Location: South East London
Contact:

Re: Hottubtimemachine

Postby furynaturre » Fri Jun 28, 2013 10:05 pm

I haven't got the room, the money or the the time to build one, but my oh my do I want to have a crack at that, that is superb!!!

Does it come with a Chevy Chase?

woodsmith
Subscriber
Posts: 2040
Joined: Mon Oct 01, 2007 8:02 am
Location: Shrewsbury
Contact:

Re: Hottubtimemachine

Postby woodsmith » Sat Jun 29, 2013 5:55 am

That's a big plant pot, does it come as a kit?
Keith

cncpaul
Subscriber
Posts: 1101
Joined: Sun Oct 07, 2007 6:34 pm

Re: Hottubtimemachine

Postby cncpaul » Sat Jun 29, 2013 10:18 am

Hey, Jonny.......Now Jonny D Hot-tub !!! that looks great.

Can you claim that through your business, it is for the disposal wood waste and a washing facility for the boys. 8-)
Paul

If you only have a hammer then everything looks like a nail

promhandicam
Moderator
Posts: 3445
Joined: Wed Oct 17, 2007 8:50 am
Location: Surrey / Hampshire
Contact:

Re: Hottubtimemachine

Postby promhandicam » Sat Jun 29, 2013 1:51 pm

furynaturre wrote:I haven't got the room, the money or the the time to build one, but my oh my do I want to have a crap in that, that is superb!!!


I'm not sure Jon will be inviting you round if that is what you plan :lol:

furynaturre
Subscriber
Posts: 232
Joined: Sun Sep 09, 2012 9:22 pm
Location: South East London
Contact:

Re: Hottubtimemachine

Postby furynaturre » Sat Jun 29, 2013 2:05 pm

Well seeing as it's a hot tub and apparently Jon's Old Man might be kicking things off, I thought we'd get all Frank Zappa about it! :lol:

User avatar
jonnyd
Subscriber
Posts: 3264
Joined: Wed Mar 12, 2008 10:07 pm
Location: Lincolnshire
Contact:

Re: Hottubtimemachine

Postby jonnyd » Sun Jun 30, 2013 7:26 pm

Thanks for the interest the parts were purchased from logosol along with the timber to go with it see here http://www.logosol.com/store/uk/index.p ... ksbad.html

The idea is as has already been said that the water expands the joints and makes it all tight and leak free.

Had a few bits to finish of in the workshop some galvanised support brackets were coach screwed to the sides to take the seating and the burner was bolted to the side of the tub.


Got some muscle in to load onto my trailer was too heavy to lift so was rolled .

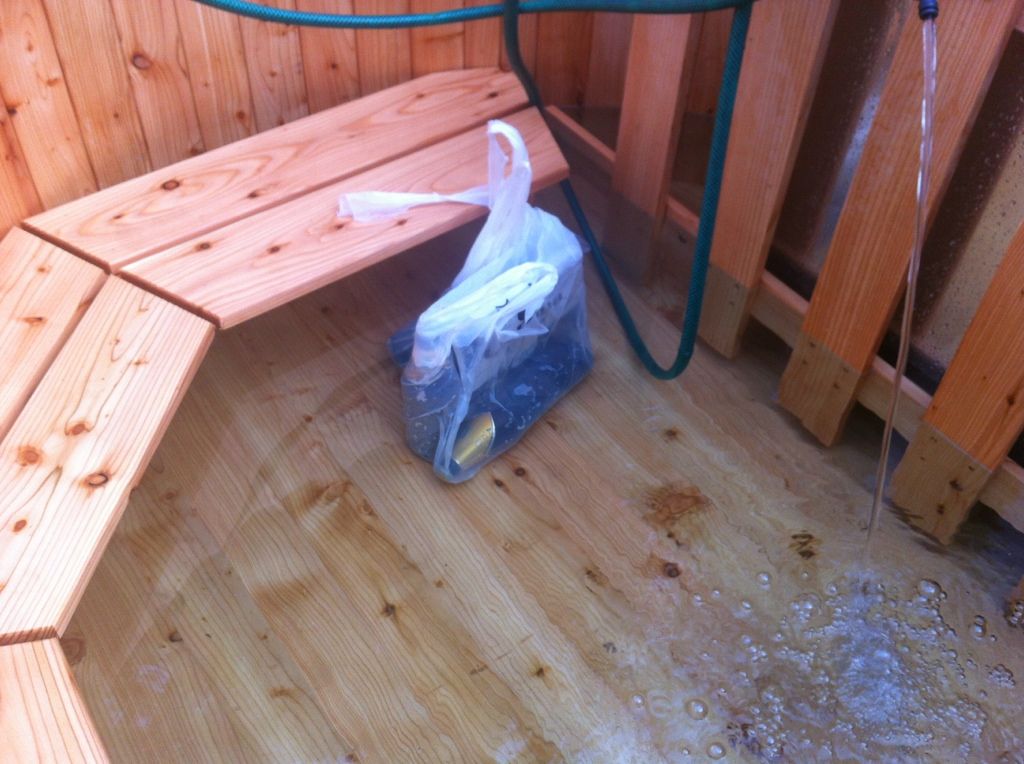

A guard was made for the woodburner and in this pic you can see the finished seating as well


Filling started and there were a few leaks from the bottom but only slight. As the cold water went in it kept the beers cold.


It took about 3 hours to fill and get to 35 degrees.

In use


A bit of over exuberant use of the wood burner meant the water got up to a toasty 48 degrees. Overnight a spare sheet of celotox insulation was put over and it was still very hot in the morning. Leaks are now a minimum about 10mm of depth lost over night.

Overall a fun project and another one has been ordered today for a mate.

Cheers

Jon
For the latest from the workshop follow on twitter @JonnysWorkshop
Pics from the workshop on Instagram @jonnydburn

OryxDesign
Subscriber
Posts: 343
Joined: Tue Oct 05, 2010 7:51 pm
Location: Staplehurst
Contact:

Re: Hottubtimemachine

Postby OryxDesign » Sun Jun 30, 2013 8:48 pm

Looks like a lot of fun 8-) ;)

promhandicam
Moderator
Posts: 3445
Joined: Wed Oct 17, 2007 8:50 am
Location: Surrey / Hampshire
Contact:

Re: Hottubtimemachine

Postby promhandicam » Sun Jun 30, 2013 8:58 pm

So have you kept it on the trailer and are currently driving round Boston with the family in the back? Should raise a few eyebrows - although having been to Boston, maybe it won't :lol:

york33
Subscriber
Posts: 722
Joined: Sat Aug 01, 2009 10:59 pm
Contact:

Re: Hottubtimemachine

Postby york33 » Wed Jul 03, 2013 7:05 am

Looks cool and I like the woodburner in theory, but don't do forward planning! There's some people offering electric kits to add into those...........

You should make them and rent them out!
